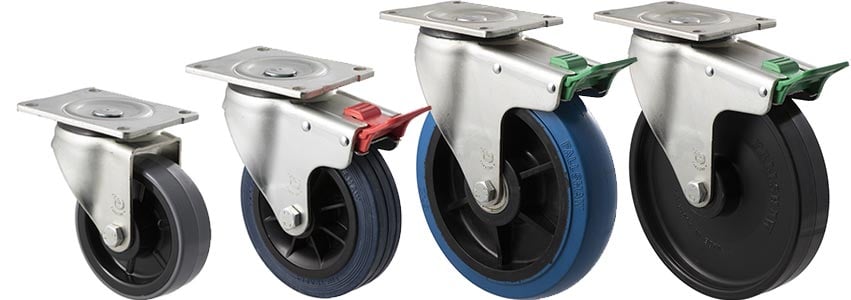

Heavy Duty Castors: O Series
Tough wheels for heavy loads
Able to carry up to 500 kg each, the versatile and tough O Series castors are available in 100, 125, 150 and 200 mm sizes, and in a wide range of fork types including swivel plate, fixed plate, total brake and direction lock. Depending on your application, various wheels are also available including blue or grey high-resilience elastomer, polyurethane (PU) on nylon or hard nylon.
Suitable applications include trolleys, carts, shop-fitting display, retail, equipment, waste bins and much more!
Forks can also be purchased separately
| Load rating: | 230–500 kg |
| Wheels: | Blue and grey high resilience elastomer, polyurethane on nylon, hard nylon |
| Forks: | Swivel, fixed plate and bolt hole zinc plated Core Coat™ forks with or without total brake or direction lock. Core Coat™ lacquer provides best quality corrosion protection, with no white or red rust after 150 hours of salt spray testing |
| Warranty: | Three years |
| Country of origin: | Made in Australia |

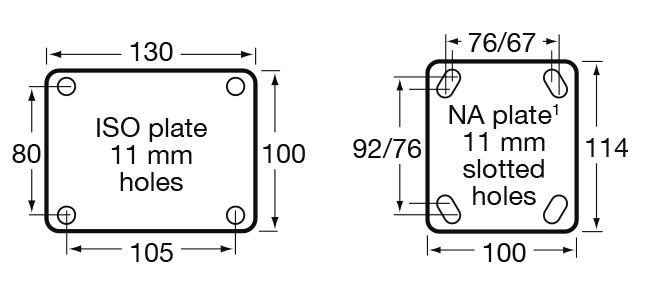

Mount dimensions:
|
|
Castor and wheel options

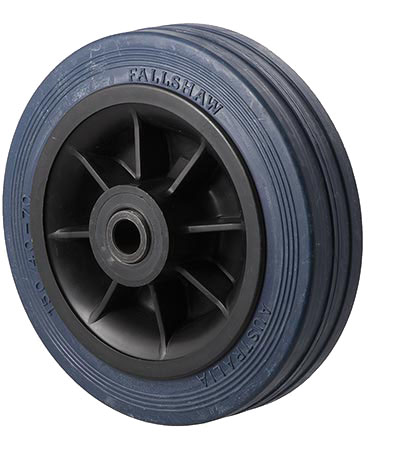

HBR wheel
Max load: 230–250 kg
Material: Blue high resilience elastomer
Bearing: Roller bearing
Thread guard: Optional
150 mm castors
200 mm castors

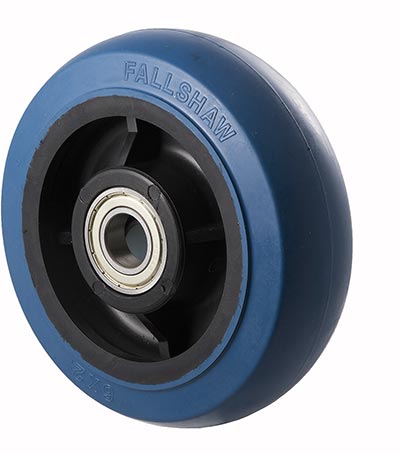

OBQ wheel
Max load: 300–400 kg
Material: Blue high resilience elastomer
Bearing: Precision bearing
Thread guard: No
100 mm castors
125 mm castors
150 mm castors
200 mm castors

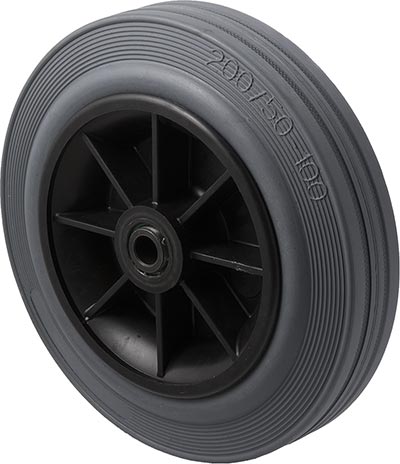

HSR wheel
Max load: 250 kg
Material: Grey high resilience elastomer
Bearing: Roller bearing
Thread guard: Optional
200 mm castors

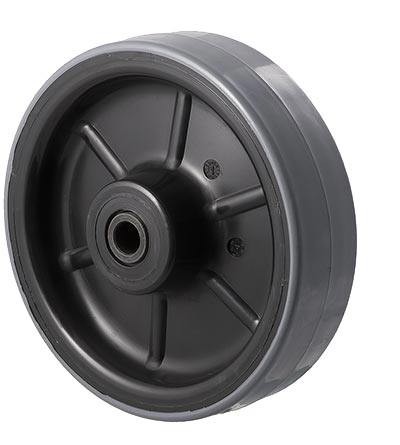

HUR wheel
Max load: 400–500 kg
Material: Polyurethane on nylon
Bearing: Roller bearing
Thread guard: Optional (150 mm wheel only)
100 mm castors
125 mm castors
150 mm castors
200 mm castors

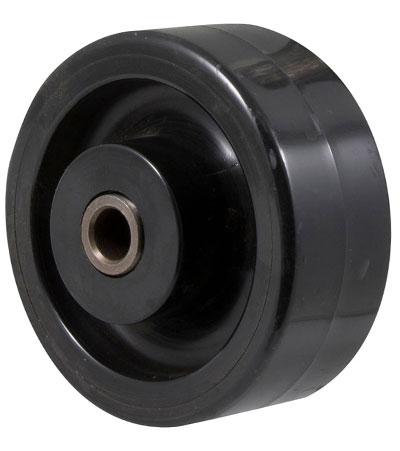

ONR wheel
Max load: 400–500 kg
Material: Hard nylon
Bearing: Roller bearing
Thread guard: No
100 mm castors
125 mm castors
150 mm castors
200 mm castors
Browse the entire range
Browse the entire O Series range of wheels, castors and forks in our online store.
