Fittings for 12 mm bolt hole castors

Our range of fittings for 12mm bolt hole castors includes pintle bolts and set screws, pintle bolt adaptor, expanding adapters, solid nylon pintles, solid steel pintles, reducing bushes, square threaded tube ends and long threaded tube ends.

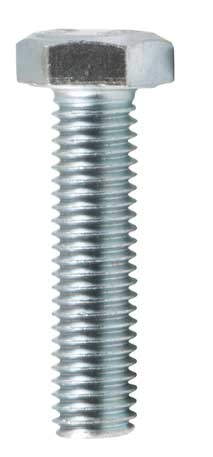

Pintle bolts and set screws

Pintle bolts with M10 threaded tube ends
Thread x Length Order code
M12 x 81 Standard -E Buy
M12 x 65 Stainless steel -ESS Buy
M12 x 35 -E12X35SET Buy
M12 x 40 -E12X40SET Buy
M12 x 50 -E12X50SET Buy
M12 x 55 -E12X55SET Buy
M12 x 65 -E12X65SET Buy
1/2" UNF x 11/8" -E1/2X30SET Buy
1/2" UNF x 19/16" -E1/2X40SET Buy
1/2" UNF x 2" -E1/2X50SET Buy
Set screw—stainless steel: M12 x 40 mm SPM12X40STSS Buy

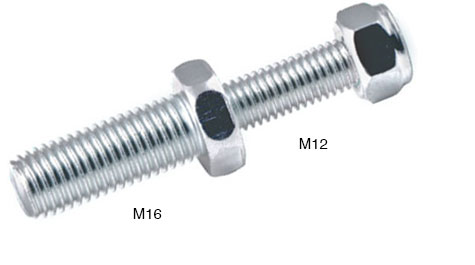

Pintle bolt adaptor

Pintle bolt adaptors
Thread x Length Description Order code
M16 x 40 Adapts J, K and M series bolt-hole castors from 12 to 16 mm. -PTLM16x40(12)
(Includes pintle and nut) 		Buy
M12 Nyloc nut
Description Order code
M12 Nyloc nut. SPM12NYLOCNUT Buy
M12 Nyloc nut—stainless steel. SPM12NYLOCSS Buy

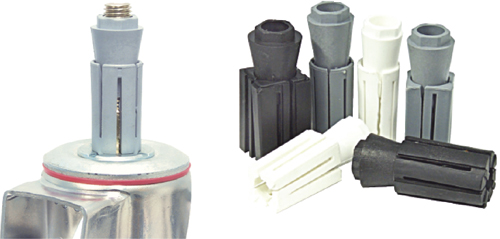

Expanding adapters Suits tubing <28 mm

Expanding adapters
Shape Material Adapter
size		 Tube size
ID range		 Mild steel Stainless steel
Round Nylon 19 18.5–21 -ER19 Buy -ER19SS Buy
Round Nylon 22 21.5–24 -ER22 Buy -ER22SS Buy
Round Rubber 22 21.5–24 -ER22R Buy -ER22RSS Buy
Round Nylon 28 25–28 -ER28 Buy -ER28SS Buy
Square Nylon 19 18.5–21 -ES19 Buy -ES19SS Buy
Square Nylon 22 21.5–24 -ES22 Buy -ES22SS Buy
Square Rubber 22 21.5–24 -ES22R Buy -ES22RSS Buy
Square Nylon 28 25–28 -ES28 Buy -ES28SS Buy

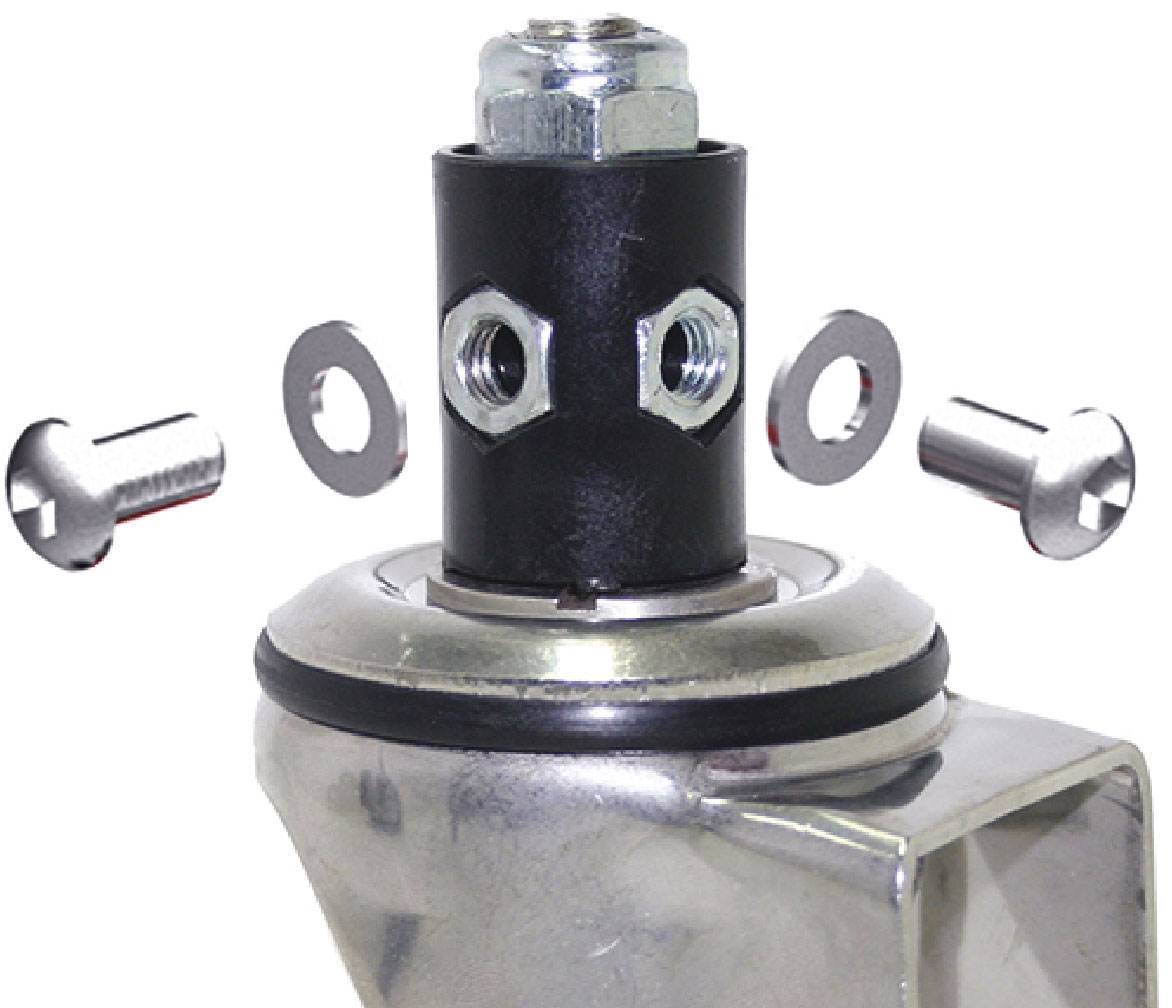

Solid nylon pintles

Solid nylon pintles
Cross drill hole diagram
Description Stem OD Tube size
(OD x wall)		 Cross drill hole
(distance from end x diameter)		 Order code
General castors
Includes 2 x inset nuts, 2 x washers, 2 x coach bolts,
1 x M12 x 60 bolt, 1 x M12 Nyloc nut.		 22 mm round 25 x 1.6 mm 19 x 6 mm SP-AR22N Buy
28 mm round 32 x 1.6 mm 19 x 8 mm SP-AR28N Buy
Trinity castors
Excludes nut.		 22 mm round 25 x 1.6 mm 19 x 6 mm SP-AFR22N Buy
28 mm round 32 x 1.6 mm 19 x 8 mm SP-AFR28N Buy

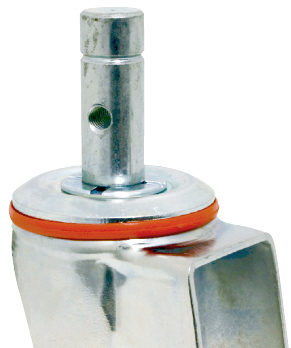

Solid steel pintles

Solid steel pintles
Cross drill hole diagram
Stem OD Tube size
(OD x wall)		 Cross drill hole
(distance from end x diameter)		 Length Order code
19 mm round 22 x 1.2 mm 19 x 8 mm 48 mm SP-AR19Z Buy
22 mm round 25 x 1.6 mm 19 x 8 mm 48 mm SP-AR22Z Buy
-AR19 with adapter
22 mm square		 25 x 1.6 mm SQ 19 x 8 mm 48 mm SP-AS22Z Buy
28 mm round 32 x 1.6 mm 19 x 8 mm 48 mm SP-AR28Z Buy

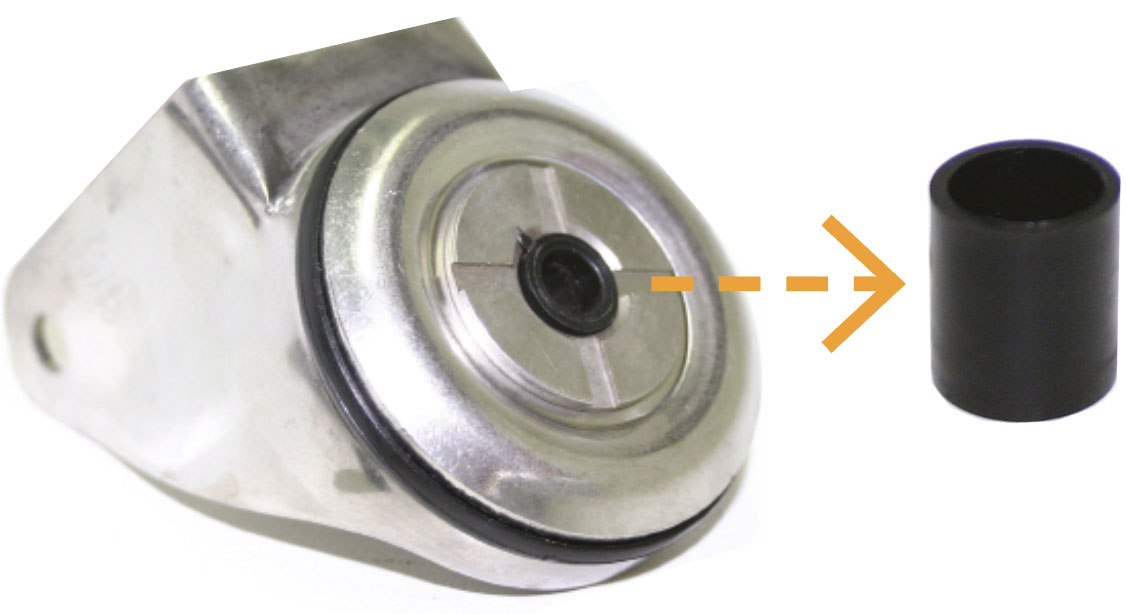

Reducing bushes

Reducing bushes
Description Order code
Convert 12 mm bolt hole to 10 mm RB1/2-10 Buy
Convert 12 mm bolt hole to 8 mm RB1/2-08 Buy

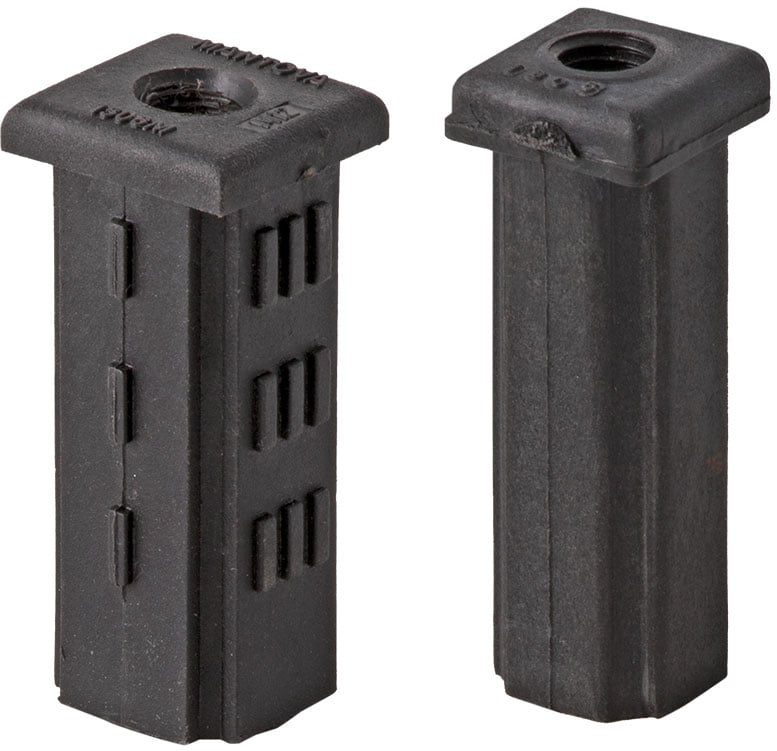

Square threaded tube ends Suits tubing >28 mm

Square threaded tube ends



Order code
(Includes M12 x 75 mm set screw, zinc-plated)

Order code
(Includes M12 x 75 mm set screw, stainless steel)

Order code
(Spare part excluding set screw)

Suits tube size
(mm)
-TTESQ25Z
Buy		 -TTESQ25S
Buy		 SP-TTESQ25
Buy		 25 x 25 square
(1.6–2.5 wall)
-TTESQ32Z
Buy		 -TTESQ32S
Buy		 SP-TTESQ32
Buy		 32 x 32 square
(1.6–2.5 wall)
-TTESQ38Z
Buy		 -TTESQ38S
Buy		 SP-TTESQ38
Buy		 38 x 38 square
(1.6–2.5 wall)
-TTESQ50Z
Buy		 -TTESQ50S
Buy		 SP-TTESQ50
Buy		 50 x 50 square
(1.6–2.5 wall)


Long threaded tube ends (for use with 10 mm and 12 mm bolt hole castors)

Square tube ends with internal zinc-plated mild steel thread

Suits SPM10x60SETZ set-screw (ordered separately).

Square tube ends with internal zinc-plated mild steel thread

Suits external tube size (mm)

19

40

40

51

Suits internal tube size (mm)

15-16

36-37

36-37

47-48

Internal thread diameter (mm)

M10

M10

M12

M16

Internal thread length (mm)

24

24

24

31

Knock-in length (mm)

22.5

39

39

39

Max load (kg)

50

500

500

750

Order code

AFLTS19/M10

AFLTS40/M10

AFLTS40/M12

AFLTS51/M16



Buy

Buy

Buy

Buy

Square tube ends with internal nylon thread

Suits SPM10x60SETZ set-screw (ordered separately).

Square tube ends with internal nylon thread

Suits external tube size (mm)

25

25

32

32

38

38

38

51

51

Suits internal tube size (mm)

22-23

22-23

28-29

28-29

35-36

35-36

35-36

47-48

47-48

Internal thread diameter (mm)

M10

M12

M10

M12

M10

M12

M16

M10

M12

Internal thread length (mm)

24

24

24

24

24

24

31

24

24

Knock-in length (mm)

39

39

39

39

41

41

42

39

39

Max load (kg)

250

250

350

350

500

500

500

750

750

Order code

AFLTPS25/ M10

AFLTPS25/ M12

AFLTPS32/ M10

AFLTPS32/ M12

AFLTPS38/ M10

AFLTPS38/ M12

AFLTPS38/ M16

AFLTPS51/ M10

AFLTPS51/ M12



Buy

Buy

Buy

Buy

Buy

Buy

Buy

Buy

Buy

Round tube ends with internal mild steel thread

Suits SPM10x60SETZ set-screw (ordered separately).

Square tube ends with internal nylon thread

Suits external tube size (mm)

25

25

32

32

38

38

51

Suits internal tube size (mm)

22-23

22-23

28-29

28-29

35-36

35-36

47-48

Internal thread diameter (mm)

M10

M12

M10

M12

M10

M12

M12

Internal thread length (mm)

24

24

24

24

24

24

31

Knock-in length (mm)

39

39

39

39

41

41

42

Max load (kg)

100

100

250

250

300

300

450

Order code

AFLTR25/ M10

AFLTR25/ M12

AFLTR32/ M10

AFLTR32/ M12

AFLTR38/ M10

AFLTR38/ M12

AFLTR51/ M12



Buy

Buy

Buy

Buy

Buy

Buy

Buy
