Castor

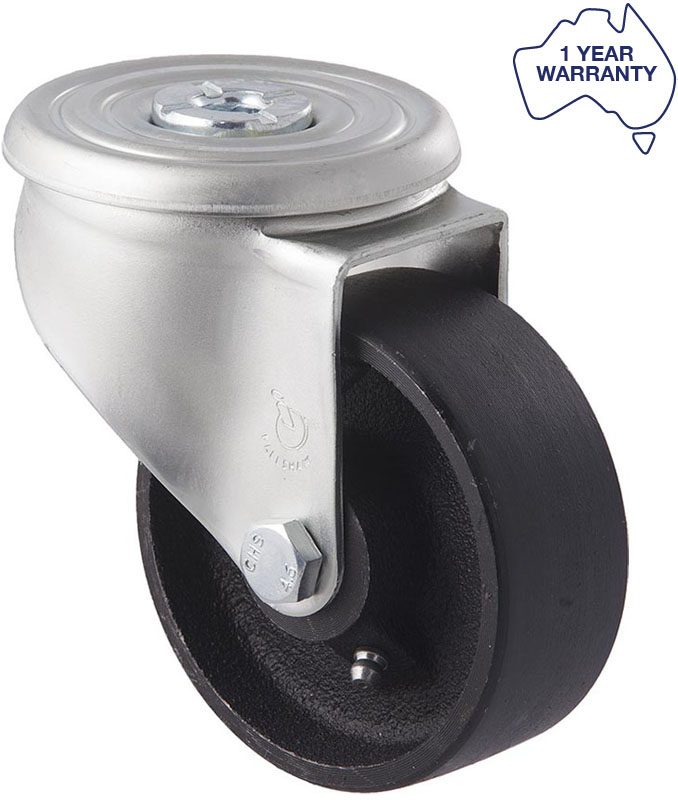

J Series castor, 100mm x 38mm specialised high-temperature (heat-resistant) cast iron wheel, plain bearing, swivel plate, zinc plated fork, 230 kg load rating.
J100 Cast iron Plain BRG J100 Znc Plate(ISO) CGWL HITEM J HiLow - Castor
Order code: JCI100/JZPHT
$64.08 (Inc GST)
0.0
0 reviews
The JCI100/JZPHT Castor has a Cast iron wheel with a diameter of 100 mm, and a maximum load capacity of 230 kg per Castor.
Product type: |
Castor |
Order code: |
JCI100/JZPHT |
Wheel diameter (mm): |
100 |
Load capacity (kg): |
230 |
Mount type: |
Swivel plate ISO |
Brake type: |
No brake |
Tyre type (material): |
Cast iron |
Fork mount dimensions
For castor plate and bolt hole dimensions, visit the fork mount dimensions page.
3D CAD drawings:
Key Features
| Available in: | EA , EACH |
