Castor

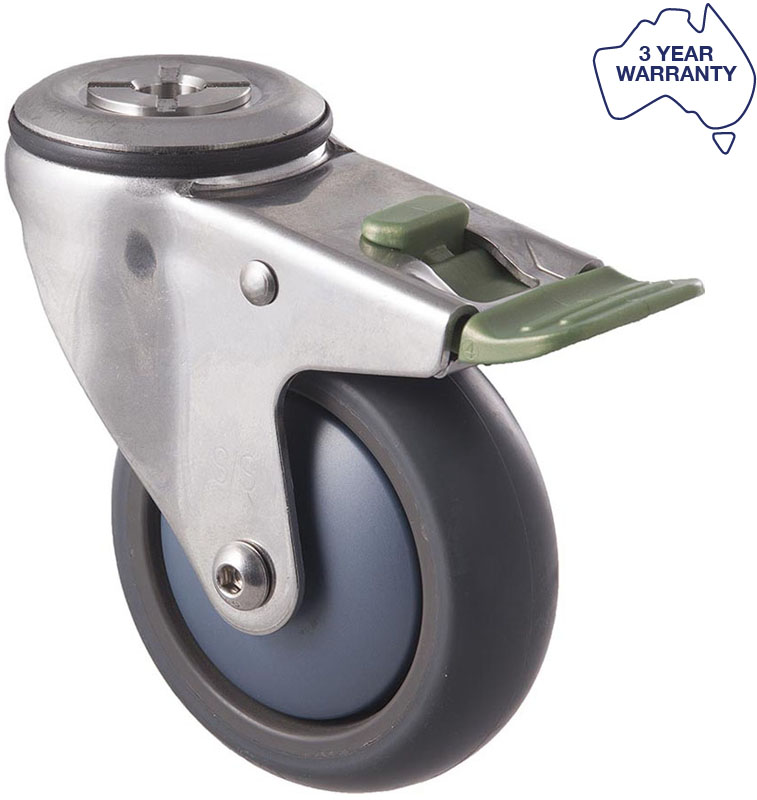

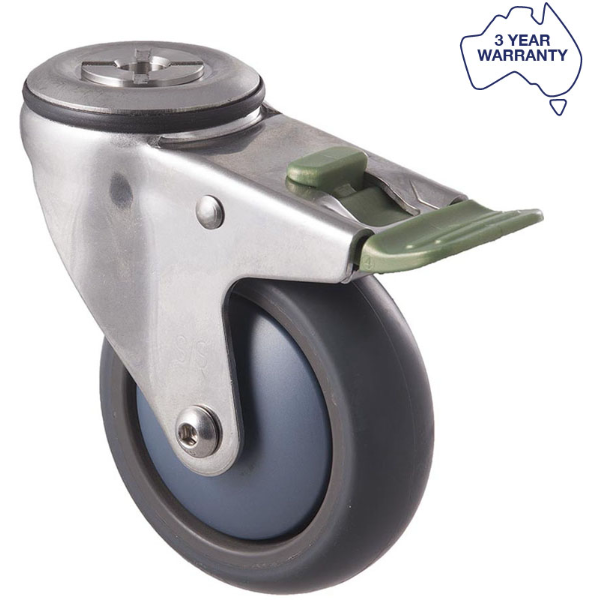

M Series castor, antistatic/conductive 100mm x 32mm TPE rubber wheel, thread guard, swivel bolt hole, direction lock, stainless steel fork, 85 kg load rating
M100 Antistitic S/S BRG TG M125 S/S Bolt hole SWL DL
Order code: MAC100G/MSHDL
$105.16 (Inc GST)
0.0
0 reviews
The MAC100G/MSHDL Castor has a Conductive TPE wheel with a diameter of 100 mm, and a maximum load capacity of 85 kg per Castor.
Product type: |
Castor |
Order code: |
MAC100G/MSHDL |
Wheel diameter (mm): |
100 |
Load capacity (kg): |
85 |
Mount type: |
Swivel bolt hole |
Brake type: |
Direction lock |
Tyre type (material): |
Conductive TPE |
Fork mount dimensions
For castor plate and bolt hole dimensions, visit the fork mount dimensions page.
3D CAD drawings:
Key Features
| Available in: | EA , EACH |
